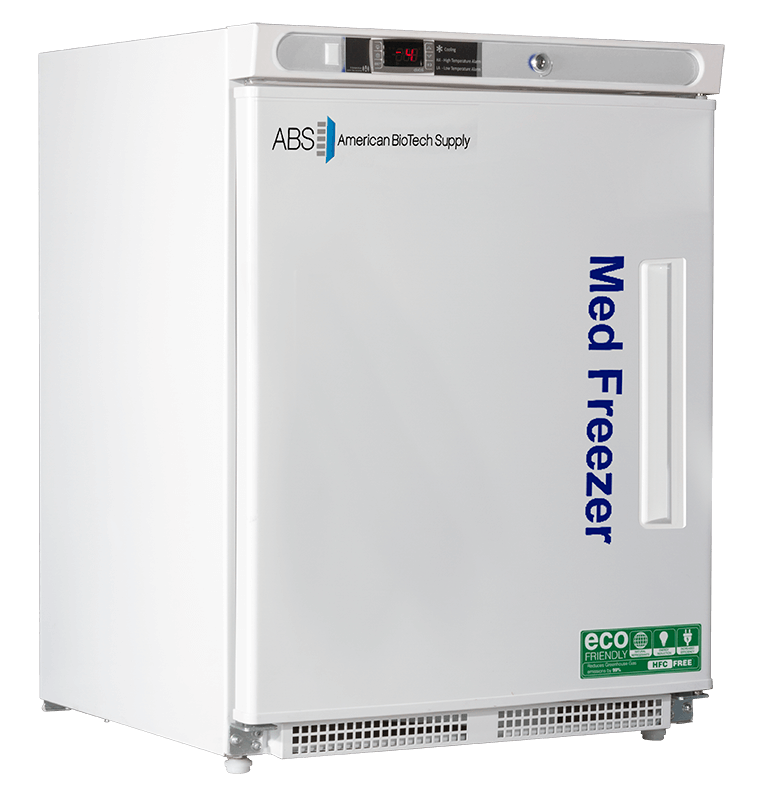

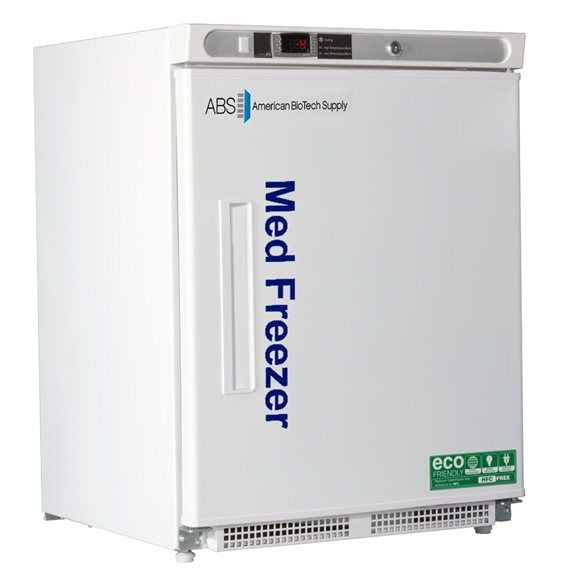

Premier Built-In Undercounter ADA Manual Defrost Vaccine Freezers
Manufacturer: American Biotech Supply
Description
The Premier Pharmacy Built In Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Features:
- Microprocessor temperature controller
- Digital temperature display
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, “buffered” probe in the product simulated solution, min/max memory
- Audible and visual high and low temperature alarms with remote contacts
- 2 probes: 1 in air and 1 in glycol bottle
- Probe access port (3/8")
- Magnetic door gasket for positive seal
- Recessed door
- Leveling legs
- High density urethane foam cabinet and door insulation
- Energy Consumption 0.97 kWh/day
- Pyxis®, Omnicell® and AcuDose RX® compatible
Certifications and Compliances:
- ADA Compliant
- UL, C-UL listed
- ENERGY STAR certified
Warranty:
- Two year parts and labor warranty
- Three year compressor parts only warranty
| SKU | Door Type | Operating Temperature Range | Certification | Warranty | Compliance | Hinge |
|---|---|---|---|---|---|---|
| PH-ABT-HC-UCBI-0420-ADA | Solid Swing Door | -15°C to -25°C | UL, C-UL listed, ENERGY STAR | 2 Year | ADA | Right |
| PH-ABT-HC-UCBI-0420-ADA-LH | Solid Swing Door | -15°C to -25°C | UL, C-UL listed, ENERGY STAR | 2 Year | ADA | Left |
|
|
PH-ABT-HC-UCBI-0420-ADA Ext. CutSheet | Download |
|
|
PH-ABT-HC-UCBI-0420-ADA Int. CutSheet | Download |
|
|
PH-ABT-HC-UCBI-0420-ADA Specification Sheet | Download |
|
|
PH-ABT-HC-UCBI-0420-ADA-LH Specification Sheet | Download |
|
|
PH-ABT-HC-UCBI-0420-ADA-LH Exterior Cut Sheet | Download |
|
|
PH-ABT-HC-UCBI-0420-ADA-LH Interior Cut Sheet | Download |
| SKU | Dimensions | Electrical Information | Refrigerant | Controller |
|---|---|---|---|---|
| PH-ABT-HC-UCBI-0420-ADA | 23.75 in x 24.5 in x 31.9375 in | 115V, 60Hz, 1.5A, 1/8 HP | R600a | Microprocessor |
| PH-ABT-HC-UCBI-0420-ADA-LH | 23.75 in x 24.5 in x 31.9375 in | 115V, 60Hz, 1.5A, 1/8 HP | R600a | Microprocessor |
Starting at from $2,226.00 Sale $2,114.70
Select a product below and add it to your cart to request a quote.
