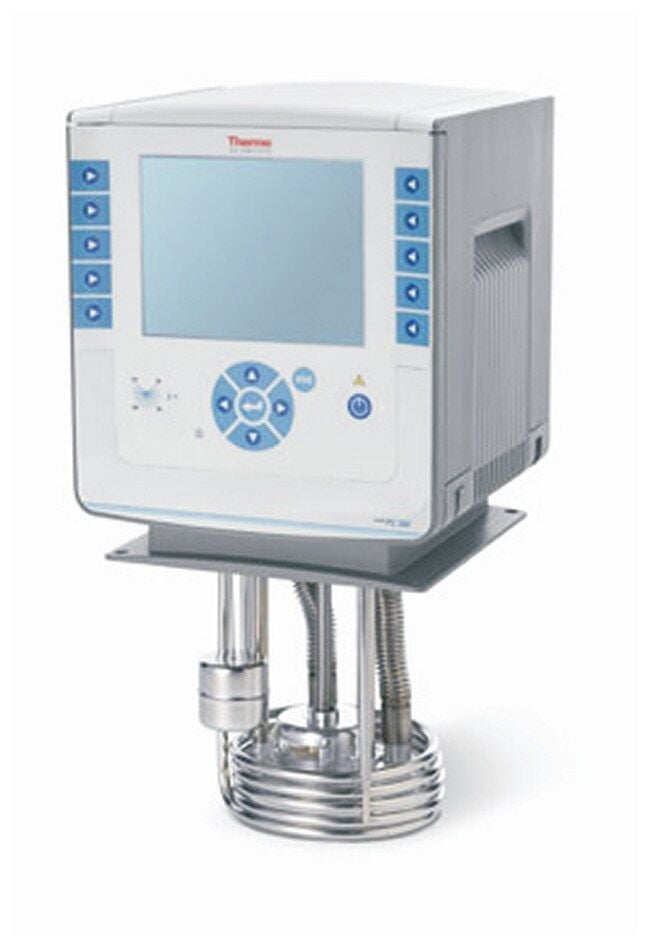

PC300 Immersion Circulators
Manufacturer: Thermo Fisher
Description
Thermo Temperature Control Specifications
Thermo Scientific™ PC201 Immersion Circulators feature a 3.0Kw heater for faster time to temperature, an all stainless steel pump with ceramic rotors and offer extreme temperature performance ranging from −50° to +300°C. Features include an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.
- Max. temperature: 300°C
- Temp. stability: 0.015
- 3.0kW heater for faster time to temperature
- All stainless-steel pump with ceramic rotors
- Force/suction pump with 560mbar pressure and 24L/min flow
- Heating capacity 1.2kW
- External T control via PT100 sensor port
- Application threshold alarms to safeguard experiments
- Temperature high and low limits
- Seven languages (English, German, French, Spanish, Italian, Chinese and Japanese)
- Ten ramp programs with edit during run or pause
- USB port for remote control
- Real-time clock
- Multifunction port connects
+ Booster pump (1 bar extra)
+ Booster heater (2kW extra)
+ Auto refill device
+ Magnetic/solenoid valve box (e.g. control tap-water cooling)
Includes: 8mm and 12mm hose barbs with bridge (–0025 only), pump plug for external circulation, and 6ft. power cord.
| Specifications | 1590005 | 1590025 |
| Heating Capacity (Metric) | 3kW | 3kW |
|---|---|---|
| Height (English) Exterior | 16.6 in. | 16.6 in. |
| Height (Metric) Exterior | 42.1cm | 42.1cm |
| Voltage | 200 to 230V | 200 to 230V |
| Hertz | 50/60Hz | 50/60Hz |
| Length (English) Exterior | 9.2 in. | 9.2 in. |
| Length (Metric) Exterior | 23.3cm | 23.3cm |
| Flow Rate | 24L/min. | 24L/min. |
| Max. Pressure | 500mbar/8.12psi | 500mbar/8.12psi |
| Max. Temperature (Metric) | 300°C | 300°C |
| Model | PC300 | PC300 w/bridge |
| Net Weight (English) | 10.4 lb. | 10.4 lb. |
| Net Weight (Metric) | 4.7kg | 4.7kg |
| Temperature Stability | 0.01°C | 0.01°C |
| Width (English) Exterior | 7.4 in. | 7.4 in. |
| Width (Metric) Exterior | 18.9cm | 18.9cm |
| Certifications/Compliance | CE marked, RoHS | CE marked, RoHS |
| Dimensions (L x W x H) Exterior | 9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1cm) | 9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1cm) |
| Electrical Requirements | 200 to 230V 50/60Hz | 200 to 230V 50/60Hz |
