Venticell® ECO Forced Air Convection Dry Heat Ovens
Manufacturer: BMT USA
The Venticell® ECO Forced Air Convection Dry Heat Ovens from BMT USA feature a patented forced air convection system that utilizes vertical and horizontal airflow for fast heating and cooling with low-temperature variations. Their microprocessor controller has real-time programming and 9 programs to choose from. These units are ideal for sterilizing lab glassware, drying wet media, and testing materials.
Description
In Stock!
Lead Times May Vary
Equipped with BMT's patented forced air convection system, the Venticell® produces simultaneous vertical and horizontal airflow for rapid heating and cooling times with precise temperature uniformity. The fuzzy logic enabled microprocessor control system provides precise temperature control without overshooting the set point. Venticell® Forced Air Ovens are ideal for sterilizing glassware and devices, drying wet media, and materials testing.
Features:
- ECO standard microprocessor controller
- Fuzzy logic and 3 inch digital LCD display
- Real-time programming and cycling
- 9 programs / 2 segments each for varying loads and parameters up to 99 cycles
- Digital safety thermostat
- Delayed heating start and stop function
- Acoustic and digital alarms
- Keypad lock
- USB and RS 232 port
- Pharmaceutical grade AISI 304 stainless steel chamber
- Removable inner chamber
- Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions
- Rounded interior corners
- Patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing
- Molded brackets into the inner chamber walls
- 50 mm stainless steel port
Certifications:
- CE, UL, and CSA listed
| SKU | Shelf Type | Model # | Temperature Uniformity | Hinge | Door Type | Heat-Up Time | Interior Material |
|---|---|---|---|---|---|---|---|
| MC 000211 | Adjustable | Venticell ECO 55 | ±0.4°C | Right | Solid Swing Door | 49 min @ 230V | AISI 304 Stainless Steel |

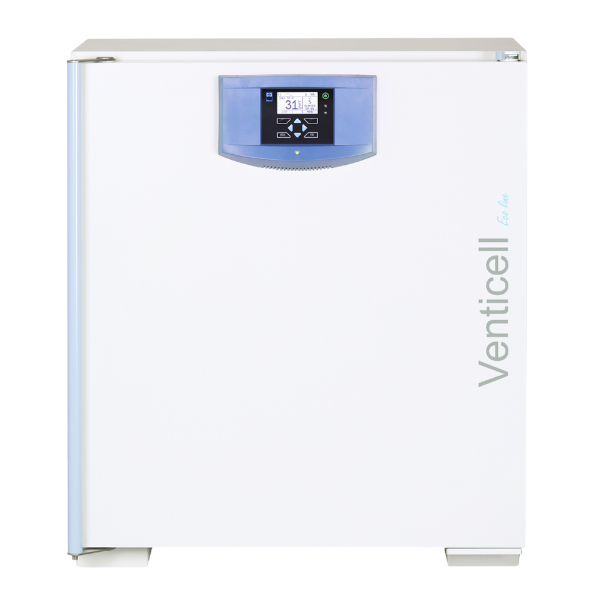

| MC 000212 | Adjustable | Venticell ECO 111 | ±0.4°C | Right | Solid Swing Door | 53 min @ 230V | AISI 304 Stainless Steel |

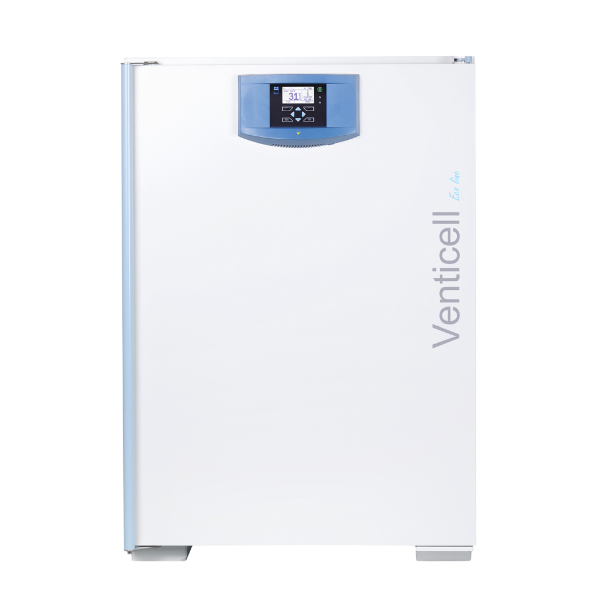

| MC 000213 | Adjustable | Venticell ECO 222 | ±0.4°C | Right | Solid Swing Door | 70 min @ 230V | AISI 304 Stainless Steel |

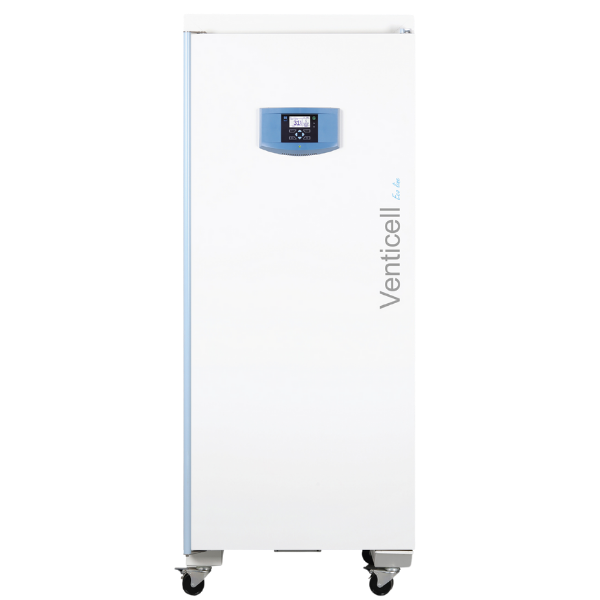

| MC 000214 | Adjustable | Venticell ECO 404 | ±0.4°C | Right | Solid Swing Door | 58 min @ 230V | AISI 304 Stainless Steel |
| MC 000215 | Adjustable | Venticell ECO 707 | ±0.4°C | Left and Right | Dual Solid Swing Door | 64 min @ 230V | AISI 304 Stainless Steel |

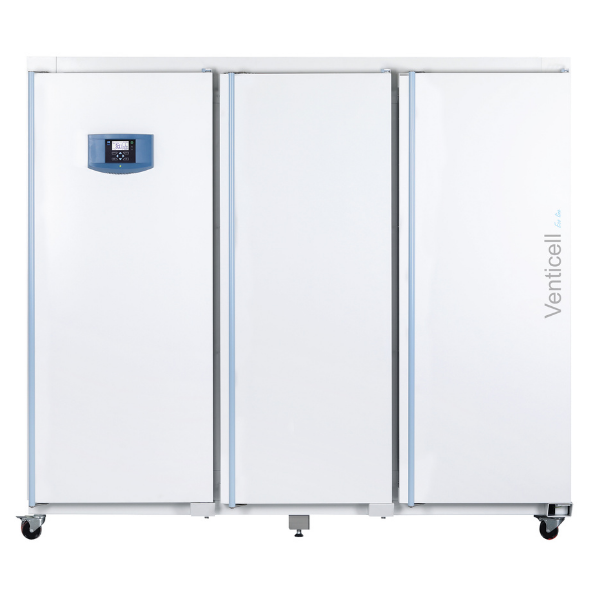

| MC 000216 | Adjustable | Venticell ECO 1212 | ±1.3°C | Left and Right | Triple Solid Swing Door | 68 min @ 230V | AISI 304 Stainless Steel |
|
Venticell Forced Air Convection Dry Heat Ovens Data Sheet | Download |
| SKU | Max. # of Shelves | Shelf Capacity | Electrical Information | Dimensions | Internal Dimensions | Display |
|---|---|---|---|---|---|---|
| MC 000211 | 4 Shelves | 44.1 lbs | 115V, 50/60Hz, 11.3A, 1.3kW | 25.2 in x 24.4 in x 26.8 in | 15.7 in x 14.6 in x 13.8 in | Digital |
| MC 000212 | 7 Shelves | 44.1 lbs | 115V, 50/60Hz, 16.5A, 1.9kW | 29.9 in x 25.2 in x 33.9 in | 21.3 in x 14.6 in x 20.9 in | Digital |
| MC 000213 | 10 Shelves | 66.1 lbs | 115V, 50/60Hz, 16.5A, 1.8kW | 31.1 in x 29.9 in x 43.1 in | 21.3 in x 20.5 in x 29.9 in | Digital |
| MC 000214 | 19 Shelves | 66.1 lbs | 230V, 50/60Hz, 16A, 3.7kW | 31.1 in x 29.9 in x 75.2 in | 21.3 in x 20.5 in x 55.5 in | Digital |
| MC 000215 | 19 Shelves | 110.2 lbs | 208V-3P, 50/60Hz, 14A, 4.6kW | 45.7 in x 31.1 in x 75.2 in | 37.0 in x 20.5 in x 55.5 in | Digital |
| MC 000216 | 57 Shelves | 66.1 lbs | 230V, 50/60Hz, 11.3kW | 85.6 in x 33.3 in x 75.2 in | 21.3 in (x3) x 20.5 in x 55.5 in | Digital |
The Venticell® ECO Forced Air Convection Dry Heat Ovens from BMT USA feature a patented forced air convection system that utilizes vertical and horizontal airflow for fast heating and cooling with low-temperature variations. Their microprocessor controller has real-time programming and 9 programs to choose from. These units are ideal for sterilizing lab glassware, drying wet media, and testing materials.
Starting at $3,328.24
Request A Quote

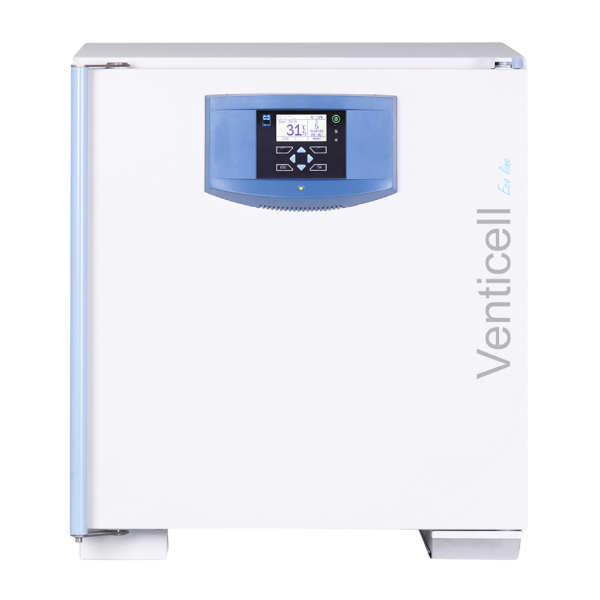

![BMT USA 55 L Venticell ECO Forced Air Convection Dry Heat Oven, 115V]()
