FED Series Avantgarde Drying and Heating Chambers

Name: FED Series Avantgarde Drying and Heating Chambers
Brand: BINDER Inc.
SKU: 9010-0295-GROUP

Manufacturer: BINDER Inc.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Includes	Model #	Price	Qty

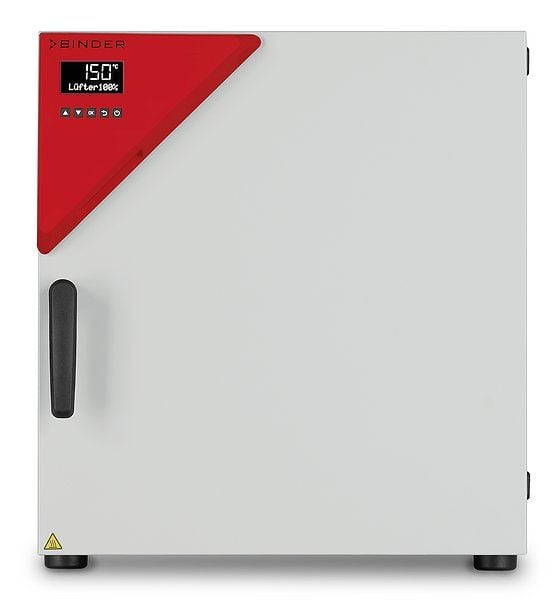

9010-0295 9010-0295	2.1 Cu Ft. Avantgarde Drying and Heating Chamber, 230V	2.1 cu ft.	Forced Convection and Timer	FED056-230V	$3,591.00	+ -
9010-0296 9010-0296	2.1 Cu Ft. Avantgarde Drying and Heating Chamber, 120V	2.1 cu ft.	Forced Convection and Timer	FED056UL-120V	$3,591.00	+ -

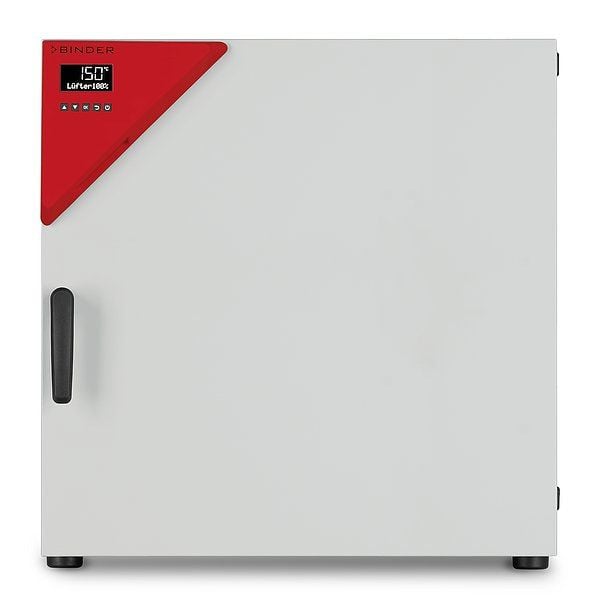

9010-0293 9010-0293	4.1 Cu Ft. Avantgarde Drying and Heating Chamber, 230V	4 cu ft.	Forced Convection and Timer	FED115-230V	$4,782.00	+ -
9010-0294 9010-0294	4.1 Cu Ft. Avantgarde Drying and Heating Chamber, 120V	4 cu ft.	Forced Convection and Timer	FED115UL-120V	$4,782.00	+ -
9010-0300 9010-0300	9.1 Cu Ft. Avantgarde Drying and Heating Chamber, 240V	9.1 cu ft.	Forced Convection and Timer	FED260UL-240V	$6,976.00	+ -

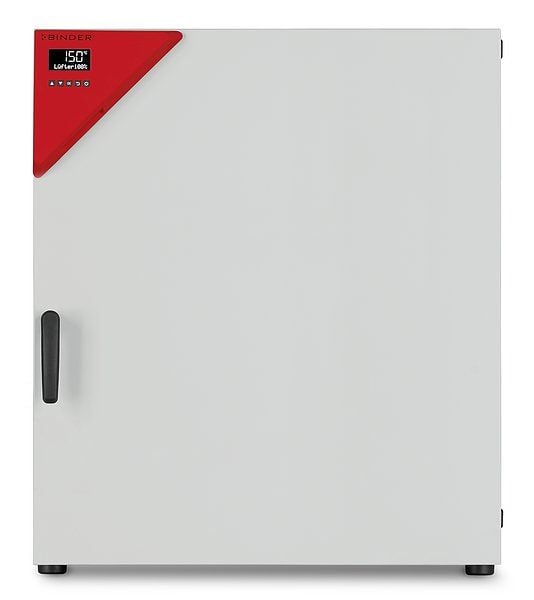

9010-0299 9010-0299	9.1 Cu Ft. Avantgarde Drying and Heating Chamber, 230V	9.1 cu ft.	Forced Convection and Timer	FED260-230V	$6,976.00	+ -
9010-0301 9010-0301	26.2 Cu Ft. Avantgarde Drying and Heating Chamber, 400V	26.2 cu ft.	Forced Convection and Timer	FED720-400V	$11,993.00	+ -

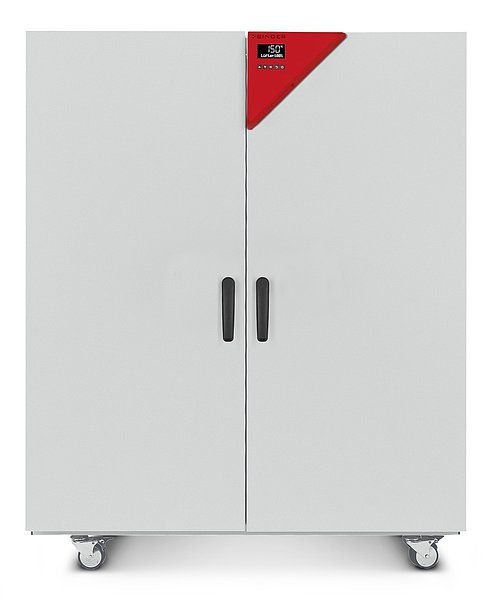

9010-0302 9010-0302	26.2 Cu Ft. Avantgarde Drying and Heating Chamber, 208V	26.2 cu ft.	Forced Convection and Timer	FED720UL-208V	$11,993.00	+ -
Total $0.00

Use the Quantity box to select product first.

The BINDER Series FED Avantgarde Line Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions are renowned for their exceptional reliability in any laboratory and application. These units ensure that the appropriate amount of heat is distributed to the corresponding specimen. This timing function allows for temperature and convection to be easily controlled.

Description

Overview

In Stock!

Lead Times May Vary

The BINDER Series FED Avantgarde Line Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.

Features:

Up to 30% lower energy consumption compared to conventional units on the market
Temperature range: +10°C above ambient temperature to +300°C
Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
High temperature accuracy thanks to APT.line™ technology
Electromechanical control of the exhaust air flap
Controller with LCD display and enhanced time functions

Benefits:

Best energy efficiency
Temperature range up to 300°C
Excellent temporal and spatial temperature accuracy

Specifications

SKU	Temperature Range	Temperature Fluctuation	Temperature Variation
9010-0295	300°C +10°C	± 0.3 at 150°C	± 1.4 at 150°C
9010-0296	300°C +10°C	± 0.3 at 150°C	± 1.4 at 150°C
9010-0293	300°C +10°C	± 0.3 at 150°C	± 1.2 at 150°C
9010-0294	300°C +10°C	± 0.3 at 150°C	± 1.2 at 150°C
9010-0300	300°C +10°C	± 0.4 at 150°C	± 1.6 at 150°C
9010-0299	300°C +10°C	± 0.4 at 150°C	± 1.6 at 150°C
9010-0301	300°C +10°C	± 0.6 at 150°C	± 2.0 at 150°C
9010-0302	300°C +10°C	± 0.6 at 150°C	± 2.0 at 150°C

Downloads

	Avantgarde Models	Download
	BINDER Service	Download

Additional Info

SKU	# of Shelves	Depth	Height	Width	Power Requirement
9010-0295	2 std./4 max.	22.26 in	24.63 in	22.06 in	230 V, 50/60 Hz
9010-0296	2 std./4 max.	22.26 in	24.63 in	22.06 in	120 V, 60 Hz
9010-0293	2 std./5 max.	23.84 in	27.78 in	27.97 in	230 V, 50/60 Hz
9010-0294	2 std./5 max.	23.84 in	27.78 in	27.97 in	120 V, 60 Hz
9010-0300	2 std./8 max.	29.94 in	37.04 in	31.91 in	240 V, 60 Hz
9010-0299	2 std./8 max.	29.94 in	37.04 in	31.91 in	230 V, 50/60 Hz
9010-0301	2 std./16 max.	34.28 in	62.6 in	45.9 in	400 V, 50/60 Hz
9010-0302	2 std./16 max.	34.28 in	62.6 in	45.9 in	208 V, 60 Hz

Starting at $3,591.00

Select a product below and add it to your cart to request a quote.

FED Series Avantgarde Drying and Heating Chambers

Description

FED Series Avantgarde Drying and Heating Chambers

Request A Quote
