FD-S Series Solid Drying and Heating Chambers
Manufacturer: BINDER Inc.
The BINDER Series FD-S Solid Line Drying and Heating Chambers with Forced Convection are renowned for their exceptional reliability in any laboratory and application. These units ensure that the appropriate amount of heat is distributed to the corresponding specimen. This line of drying and heating chambers is equipped with specific attributes that allow for efficiency and accuracy in research of any field.
Description
In Stock!
Lead Times May Vary
The BINDER Series FD-S Solid Line Drying and Heating Chambers with Forced Convection are united to drying and heating. The attributes of the Solid Line are geared towards the application in question and therefore used in research and quality assurance.
Features:- Temperature range: +10°C above ambient temperature to +250°C
- APT.line™ preheating chamber technology
- Forced convection
- Adjustable exhaust air flap
- Controller with timer function
- 1 chrome-plated rack, incl. shelf supports
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
Benefits:
- Easy handling
- Accurate temperature control
- Simple and ergonomic door opening
| SKU | Temperature Range | Temperature Fluctuation | Temperature Variation | Air Change |
|---|---|---|---|---|
| 9090-0018 | 250°C +10°C | ± 0.4 at 150°C | ± 2.6 at 150°C | 4 x/h at 100°C |
| 9090-0019 | 250°C +10°C | ± 0.4 at 150°C | ± 2.6 at 150°C | 4 x/h at 100°C |
| 9090-0024 | 250°C +10°C | ± 0.4 at 150°C | ± 2.0 at 150°C | 2 x/h at 100°C |
| 9090-0025 | 250°C +10°C | ± 0.4 at 150°C | ± 2.0 at 150°C | 2 x/h at 100°C |
|
FD S 056 Data Sheet | Download |
|
|
FD S 115 Data Sheet | Download |
|
|
Solid Line Brochure | Download |
|
|
BINDER Service | Download |
| SKU | # of Shelves | Depth | Height | Width | Power Requirement |
|---|---|---|---|---|---|
| 9090-0018 | 1 std./3 max. | 22.73 in | 24.63 in | 24.19 in | 230 V, 50/60 Hz |

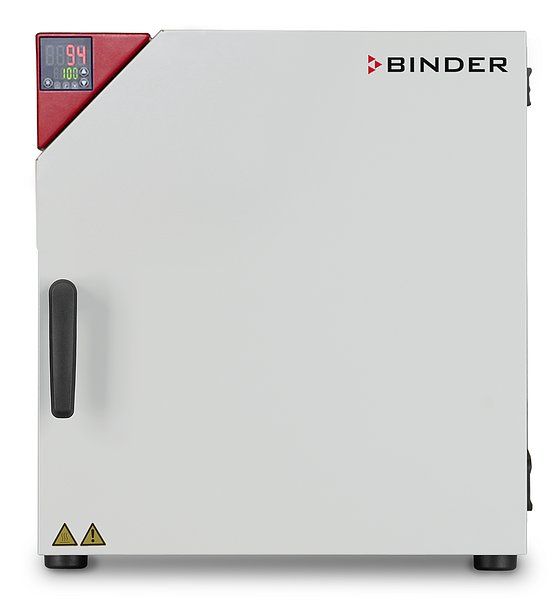

| 9090-0019 | 1 std./3 max. | 22.73 in | 24.63 in | 24.19 in | 120 V, 60 Hz |
| 9090-0024 | 1 std./5 max. | 24.27 in | 28.96 in | 30.1 in | 230 V, 50/60 Hz |

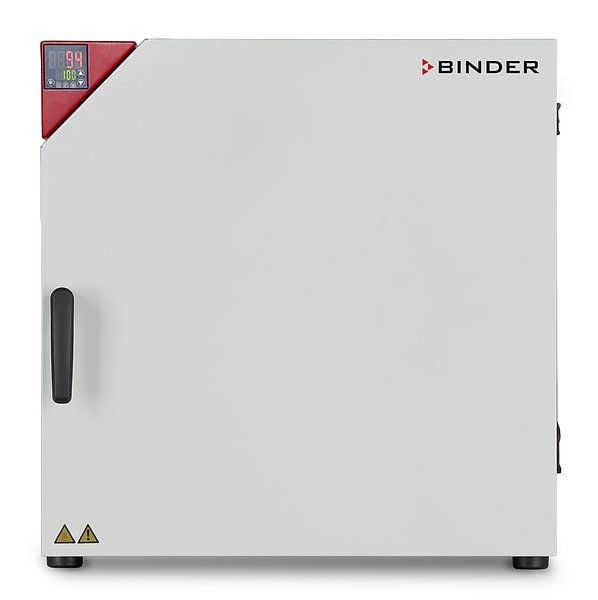

| 9090-0025 | 1 std./5 max. | 24.27 in | 28.96 in | 30.1 in | 120 V, 60 Hz |
The BINDER Series FD-S Solid Line Drying and Heating Chambers with Forced Convection are renowned for their exceptional reliability in any laboratory and application. These units ensure that the appropriate amount of heat is distributed to the corresponding specimen. This line of drying and heating chambers is equipped with specific attributes that allow for efficiency and accuracy in research of any field.
Starting at $2,116.00
Request A Quote
![FD-S Series Solid Drying and Heating Chambers]()
Select a product below and add it to your cart to request a quote.
