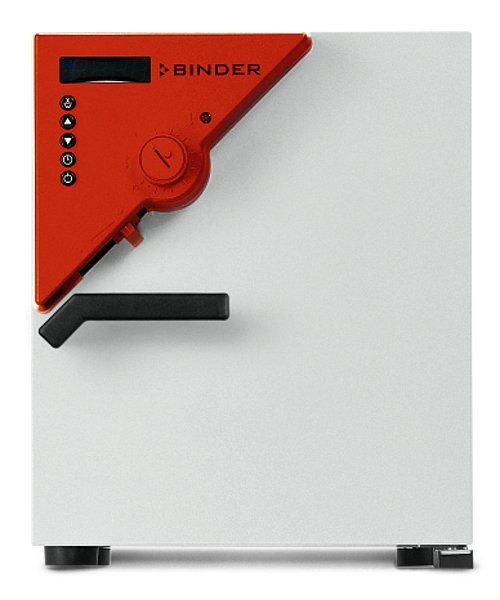

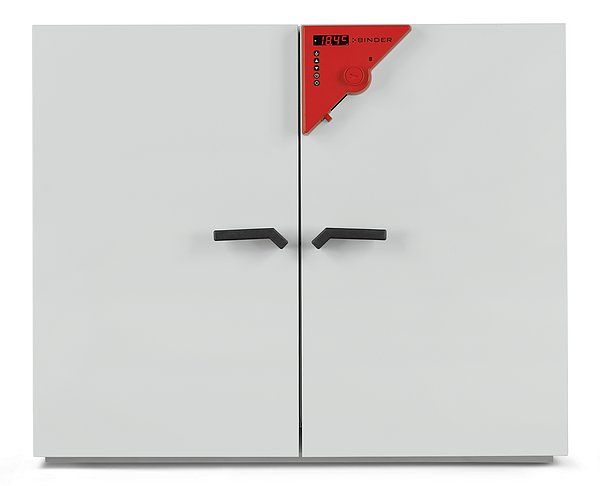

ED Series Classic Drying and Heating Chambers
Manufacturer: BINDER Inc.
The BINDER Series ED Classic Line Drying and Heating Chambers with Gravity Convection are renowned for their exceptional reliability in any laboratory and application. These units ensure that the appropriate amount of heat is distributed to the corresponding specimen. This series ensures fast, uniform drying by using the drying chamber efficiently in all thermal processes.
Description
In Stock!
Lead Times May Vary
The BINDER Series ED Classic Line Drying and Heating Chambers with Gravity Convection include routine drying and sterilization tasks up to 300°C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Features:
- Uniform drying conditions and preheating chamber technology thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
- Gravity convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
| SKU | Temperature Range | Temperature Fluctuation | Temperature Variation |
|---|---|---|---|
| 9010-0192 | +5°C Above Ambient Temperature to 300°C | ± 0.5 at 150°C | ± 2.8 at 150°C |
| 9010-0190 | +5°C Above Ambient Temperature to 300°C | ± 0.5 at 150°C | ± 2.8 at 150°C |
| 9010-0075 | +5°C Above Ambient Temperature to 300°C | ± 0.5 at 150°C | ± 3.0 at 150°C |
| 9010-0168 | +5°C Above Ambient Temperature to 300°C | ± 0.5 at 150°C | ± 3.0 at 150°C |
|
Classic Line Brochure | Download |
|
|
Drying and Heating Chambers Brochure | Download |
|
|
ED 023 Data Sheet | Download |
|
|
ED 056 Data Sheet | Download |
|
|
ED 115 Data Sheet | Download |
|
|
ED 260 Data Sheet | Download |
|
|
ED 400 Data Sheet | Download |
|
|
ED 720 Data Sheet | Download |
|
|
ED S 056 Data Sheet | Download |
|
|
BINDER Service | Download |
| SKU | # of Shelves | Dimensions | Internal Dimensions | Power Requirement |
|---|---|---|---|---|
| 9010-0192 | 2 std./4 max. | 20.49 in x 17.14 in x 19.5 in | 11.82 in x 8.75 in x 13.0 in | 120 V, 60 Hz |
| 9010-0190 | 2 std./4 max. | 20.49 in x 17.14 in x 19.5 in | 11.82 in x 8.75 in x 13.0 in | 230 V, 50/60 Hz |
| 9010-0075 | 2 std./10 max. | 30.14 in x 48.7 in x 40.4 in | 20.49 in x 39.4 in x 31.52 in | 400 V, 50/60 Hz |
| 9010-0168 | 2 std./10 max. | 30.14 in x 48.7 in x 40.4 in | 20.49 in x 39.4 in x 31.52 in | 208 V, 60 Hz |
The BINDER Series ED Classic Line Drying and Heating Chambers with Gravity Convection are renowned for their exceptional reliability in any laboratory and application. These units ensure that the appropriate amount of heat is distributed to the corresponding specimen. This series ensures fast, uniform drying by using the drying chamber efficiently in all thermal processes.
Starting at $2,493.00
Request A Quote
![ED Series Classic Drying and Heating Chambers]()
Select a product below and add it to your cart to request a quote.
