BD Series Standard Avantgarde Incubators with Gravity Convection

Name: BD Series Standard Avantgarde Incubators with Gravity Convection
Brand: BINDER Inc.
SKU: 9010-0323-GROUP

Manufacturer: BINDER Inc.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Includes	Model #	Price	Qty
9010-0323 9010-0323	2 Cu Ft. Standard Avantgarde Incubator, 230V	2 cu ft.	Gravity Convection	BD056-230V	$2,277.00	+ -

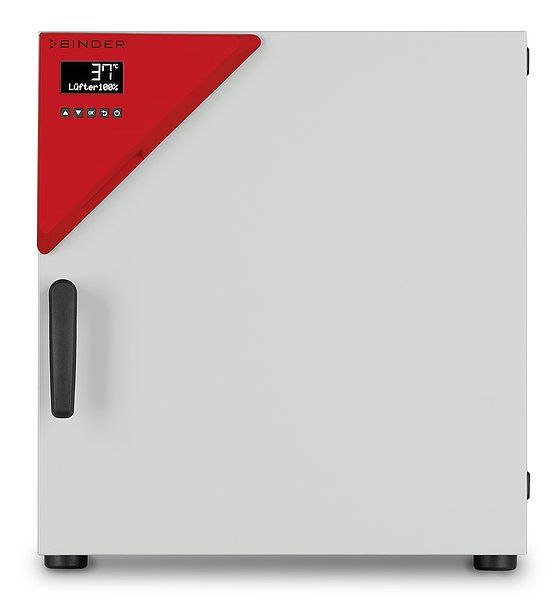

9010-0324 9010-0324	2 Cu Ft. Standard Avantgarde Incubator, 120V	2 cu ft.	Gravity Convection	BD056UL-120V	$2,277.00	+ -

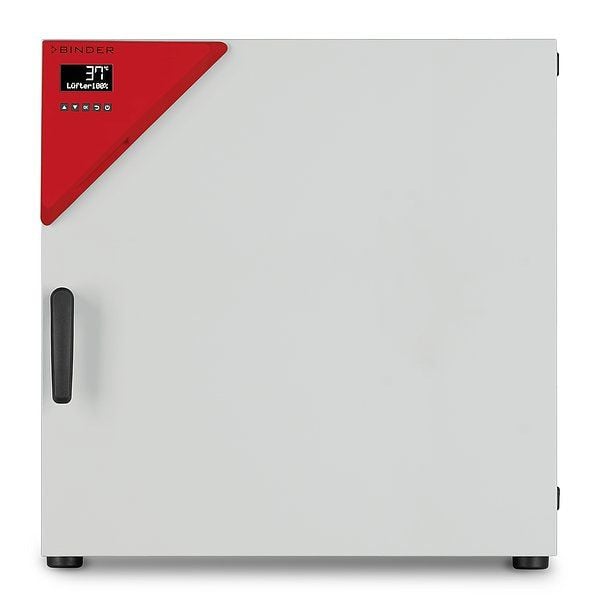

9010-0325 9010-0325	4 Cu Ft. Standard Avantgarde Incubator, 230V	4 cu ft.	Gravity Convection	BD115-230V	$3,065.00	+ -
9010-0326 9010-0326	4 Cu Ft. Standard Avantgarde Incubator, 120V	4 cu ft.	Gravity Convection	BD115UL-120V	$3,065.00	+ -

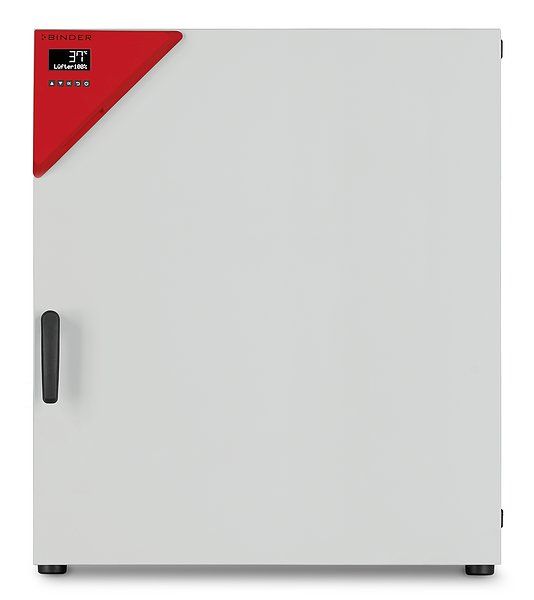

9010-0329 9010-0329	8.9 Cu Ft. Standard Avantgarde Incubator, 230V	8.9 cu ft.	Gravity Convection	BD260-230V	$5,192.00	+ -

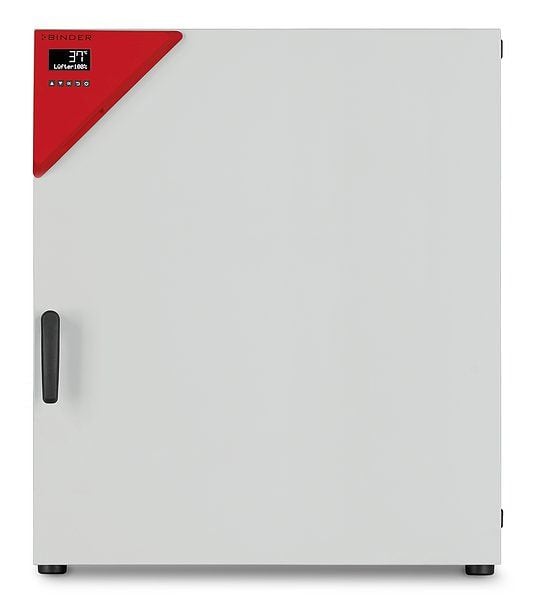

9010-0330 9010-0330	8.9 Cu Ft. Standard Avantgarde Incubator, 120V	8.9 cu ft.	Gravity Convection	BD260UL-120V	$5,192.00	+ -

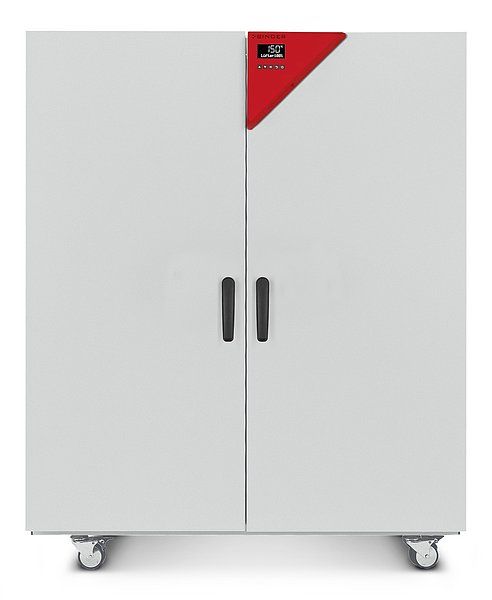

9010-0332 9010-0332	26 Cu Ft. Standard Avantgarde Incubator, 240V	26 cu ft.	Gravity Convection	BD720UL-240V	$10,095.00	+ -
9010-0331 9010-0331	26 Cu Ft. Standard Avantgarde Incubator, 230V	26 cu ft.	Gravity Convection	BD720-230V	$10,095.00	+ -
Total $0.00

Use the Quantity box to select product first.

The BINDER Series BD Avantgarde Line Standard Incubators with Gravity Convection are powerful and reliable units for many applications. These units have exceptional efficiency and temperature accuracy to meet growth and incubation requirements. The new design of the units and the homogeneous temperature distribution ensure the very best results.

Description

Overview

In Stock!

Lead Times May Vary

The BINDER Series BD Avantgarde Line Standard Incubators with Gravity Convection are specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media. The new design of the units and the homogeneous temperature distribution ensure the very best results.

Features:

Temperature range: ambient temperature plus 5°C to 100°C
High temperature accuracy thanks to APT.lin™ technology
Gravity convection
Controller with LCD display
Electromechanical control of the exhaust air flap
Inner door made of tempered safety glass
2 chrome-plated racks
Units up to 115 L are stackable
Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
Ergonomic handle design
USB port for recording data

Benefits:

Excellent temporal and spatial temperature accuracy
High process reliability
100°C disinfection routine

Specifications

SKU	Temperature Range	Temperature Fluctuation	Temperature Variation	Warm Up Time
9010-0323	100°C +5°C	± 0.1 at 37°C	± 0.3 at 37°C	42 min to 37°C
9010-0324	100°C +5°C	± 0.1 at 37°C	± 0.3 at 37°C	42 min to 37°C
9010-0325	100°C +5°C	± 0.1 at 37°C	± 0.3 at 37°C	55 min to 37°C
9010-0326	100°C +5°C	± 0.1 at 37°C	± 0.3 at 37°C	55 min to 37°C
9010-0329	100°C +5°C	± 0.2 at 37°C	± 0.3 at 37°C	60 min to 37°C
9010-0330	100°C +5°C	± 0.2 at 37°C	± 0.3 at 37°C	60 min to 37°C
9010-0332	100°C +5°C	± 0.1 at 37°C	± 0.7 at 37°C	70 min to 37°C
9010-0331	100°C +5°C	± 0.1 at 37°C	± 0.7 at 37°C	70 min to 37°C

Downloads

	BD Classic Operating Manual	Download
	BD Quick Start	Download
	BINDER Service	Download
	Standard Incubators Brochure	Download

Additional Info

SKU	# of Shelves	Door Recovery Time	Depth	Height	Width	Power Requirement
9010-0323	2 std./4 max.	15 min	22.26 in	24.63 in	22.06 in	200-230 V, 50/60 Hz
9010-0324	2 std./4 max.	15 min	22.26 in	24.63 in	22.06 in	100 - 120 V, 50/60 Hz
9010-0325	2 std./5 max.	15 min	23.84 in	27.78 in	27.97 in	200-230 V, 50/60 Hz
9010-0326	2 std./5 max.	15 min	23.84 in	27.78 in	27.97 in	100 - 120 V, 50/60 Hz
9010-0329	2 std./8 max.	16 min	29.94 in	37.04 in	31.91 in	200-230 V, 50/60 Hz
9010-0330	2 std./8 max.	16 min	29.94 in	37.04 in	31.91 in	100 - 120 V, 50/60 Hz
9010-0332	2 std./16 max.	23 min	34.28 in	62.6 in	45.9 in	240 V, 50/60 Hz
9010-0331	2 std./16 max.	23 min	34.28 in	62.6 in	45.9 in	230 V, 50/60 Hz

Starting at $2,277.00

Select a product below and add it to your cart to request a quote.
