SureTherm™ CO2 Incubators

Name: SureTherm™ CO2 Incubators
Brand: Benchmark Scientific
SKU: H3565-45-GROUP

Manufacturer: Benchmark Scientific

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Capacity	Includes	Price	Qty

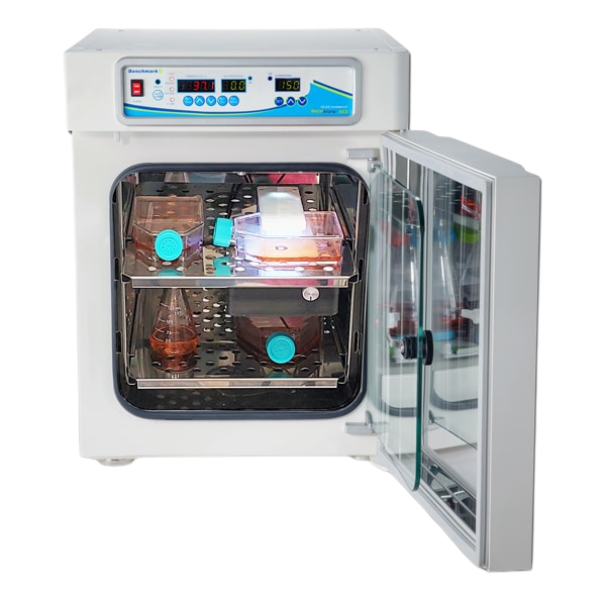

H3565-45 H3565-45	45 L SureTherm™ CO2 Incubator	45 L		$6,434.45	+ -

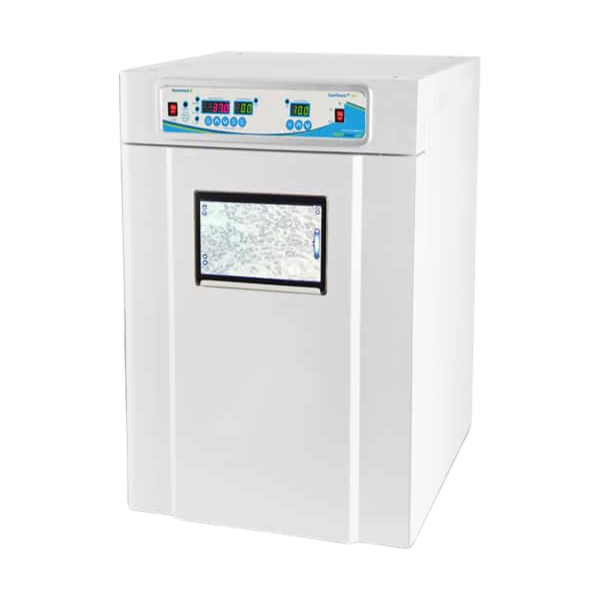

H3565-180 H3565-180	180 L SureTherm™ CO2 Incubator	180 L		$7,772.43	+ -
H3565-180HD H3565-180HD	180 L SureTherm™ CO2 Incubator, High Heat Decontamination	180 L	High Heat Decontamination	$9,717.04	+ -
H3565-180HDO2 H3565-180HDO2	180 L SureTherm™ CO2 Incubator, High Heat Decontamination and O2 Control	180 L	High Heat Decontamination, O2 Control, 6 Compartment Split Inner Door	$13,429.04	+ -
Total $0.00

Use the Quantity box to select product first.

Accessories

Grouped product items
Cat Code	Description	Quantity	Dimensions	For Use With	Material	Price	Qty
H2300-REG H2300-REG	Optional SureTherm™ CO2 Gas Regulator	Each				Regular Price $423.24 Special Price $359.76	+ -
H3565-45-LCI H3565-45-LCI	45 L SureTherm™ IncuView LCI Integrated Shelf & Integrated Wifi Microscope	Each	14 in x 11.5 in	H3565-45		$5,104.61	+ -
H3565-180-LCI H3565-180-LCI	180 L SureTherm™ IncuView LCI Integrated Shelf & Integrated Wifi Microscope	Each	20 in x 17 in	H3565-180, H3565-180HD, H3565-180HDO2		$5,318.02	+ -

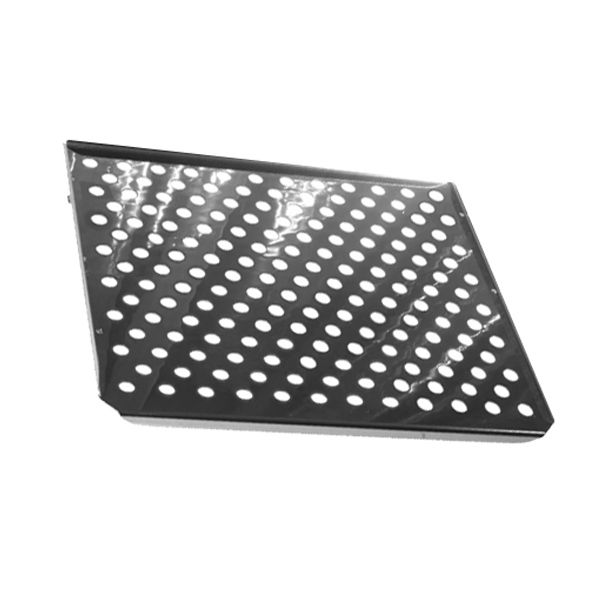

H3550-45-SH H3550-45-SH	45 L SureTherm™ Additional Shelf	Each	14 in x 11.5 in	H3565-45	Stainless Steel	$212.95	+ -

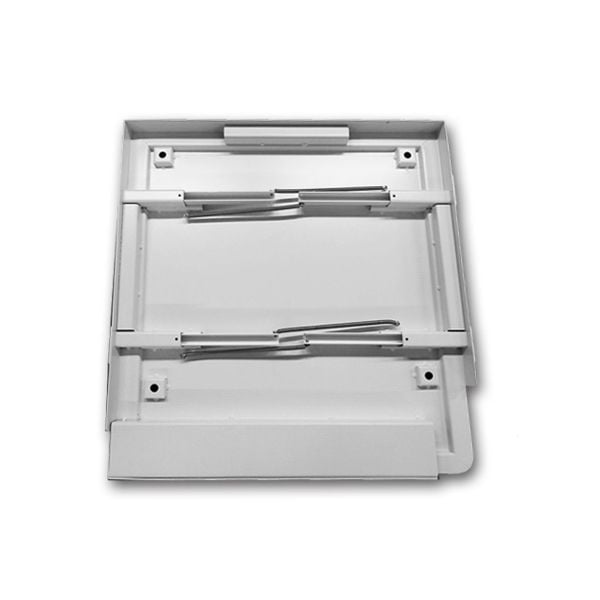

H3550-45-SK H3550-45-SK	45 L SureTherm™ Stacking Kit	Each		H3565-45	Stainless Steel	$413.40	+ -
H3550-180-SH H3550-180-SH	180 L SureTherm™ Additional Shelf	Each	20 in x 17 in	H3565-180, H3565-180HD, H3565-180HDO2	Stainless Steel	$427.26	+ -
H3550-180-SK H3550-180-SK	180 L SureTherm™ Stacking Kit	Each		H3565-180, H3565-180HD, H3565-180HDO2	Stainless Steel	$498.73	+ -
H3565-O2REG H3565-O2REG	Optional SureTherm™ O2 Gas Regulator	Each				Regular Price $443.71 Special Price $377.15	+ -
Total $0.00

Use the Quantity box to select product first.

Benchmark's SureTherm Incubators help maintain the desired environment for your cultures by controlling oxidation and temperature accuracy. Six-sided heating and an internal fan can allow controlled circulation through the chamber. Additionally, IncuView™ LCI technology creates real-time imaging to help monitor cells and eliminate temperature fluctuation

Description

Overview

In Stock!

3-5 Business Days

Cell cultures depend on optimized growth conditions to thrive. With precise temperature and CO2 control, Benchmark Scientific's SureTherm™ Incubators provide the perfect environment for your cultures. All SureTherm™ Incubators feature a proprietary heat distribution system that combines six-sided heating with a low-speed internal fan. Air is circulated uniformly throughout the chamber without air exchange from the external environment. This results in a controlled, protected environment with minimal temperature fluctuations (within 0.1°C).

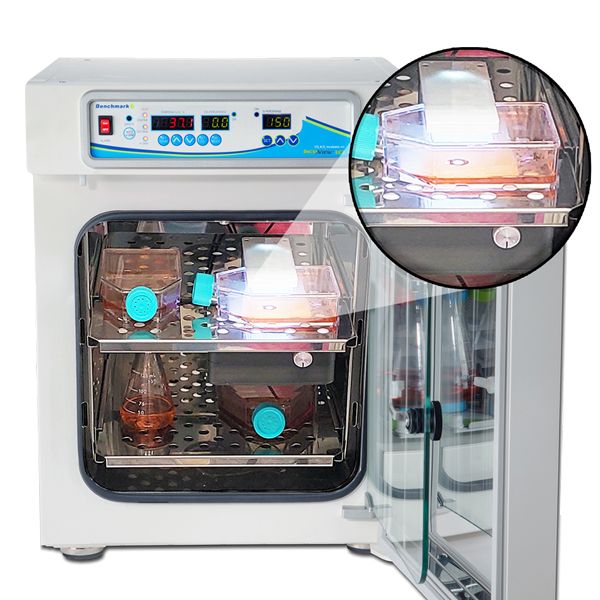

These are the first and only incubators equipped with Benchmark Scientific's IncuView™ LCI Live Cell Imaging technology for viewing cells in real-time. An internal microscope and large external display allow cells to be viewed without removal from the incubator, eliminating the inherent temperature fluctuations and risk of contamination. Additionally, they can be viewed remotely with a wifi-enabled phone, tablet, or computer.**

Features:

IncuView™ LCI (Live Cell Imaging) technology and large digital display for viewing cells in real time**
Digital microprocessor controller
Audible alarms in the event of CO₂ or temperature deviation
Dual beam IR CO₂ sensor
6 sided direct heating to reduce airflow and contamination
Heated door and frame
Stackable design
Rounded stainless steel (SS-304) chamber
High heat decontamination cycle of 125°C for 8 hours (H3565-180HD and H3565-180HDO2 only)
Split inner glass door with 6 compartments to prevent temperature and CO₂ fluctuations (H3565-180HDO2 only)

(Optional) IncuView™ LCI Microscope Specifications:

Magnification: 200x
Field of View: 1 mm x 1 mm
Resolution: 2 µm
Illumination: Top and bottom
Image format: 5 MP (2592 x 1944 pix)
Video format: MPEG-4 up to 1296 x 972 10 FPS
Compatibile sample vessels: Clear flasks, dishes, and plates (< 8 mm thick)
Optics: Brightfield or darkfield
Sensor: CMOS
Electrical: 5V (powered by internal micro-USB)

Warranty:

2 year warranty

*At a set tempertaure of 37.0°C.

**Cell viewing requires optional IncuView™ Integrated Microscope Shelf (Item H3565-45-LCI or H3565-180-LCI).

Specifications

SKU	Increments	Temperature Stability	Temperature Uniformity	Temperature Accuracy	Ambient Temperature Range	CO2 Range	O2 Control Range
H3565-180HDO2	Temperature: 0.1°C CO2: 0.1%	0.1°C*	±0.4°C*	±0.1°C*	+5°C to 60°C	0 to 20%	0.5 to 20%
H3565-45	Temperature: 0.1°C CO2: 0.1%	0.1°C*	±0.4°C*	±0.1°C*	+5°C to 60°C	0 to 20%
H3565-180	Temperature: 0.1°C CO2: 0.1%	0.1°C*	±0.4°C*	±0.1°C*	+5°C to 60°C	0 to 20%
H3565-180HD	Temperature: 0.1°C CO2: 0.1%	0.1°C*	±0.4°C*	±0.1°C*	+5°C to 60°C	0 to 20%

Downloads

SureTherm™ CO2 Incubator Specification Sheet

Download

Additional Info

SKU	# of Shelves	Electrical Information	Material	Warranty	Chamber Size	Sensor Technology
H3565-180HDO2	3 Shelves	120V or 230V, 50-60Hz, 700W	Stainless Steel	2 Year	18.7 in x 20.8 in x 28 in	Dual Beam IR CO₂ Sensor
H3565-45	2 Shelves	120V or 230V, 50-60Hz, 300W	Stainless Steel	2 Year	18.7 in x 20.8 in x 28 in.	Dual Beam IR CO₂ Sensor
H3565-180	3 Shelves	120V or 230V, 50-60Hz, 420W	Stainless Steel	2 Year	13.2 in x 14.2 in x 15.4 in	Dual Beam IR CO₂ Sensor
H3565-180HD	3 Shelves	120V or 230V, 50-60Hz, 700W	Stainless Steel	2 Year	18.7 in x 20.8 in x 28 in	Dual Beam IR CO₂ Sensor
