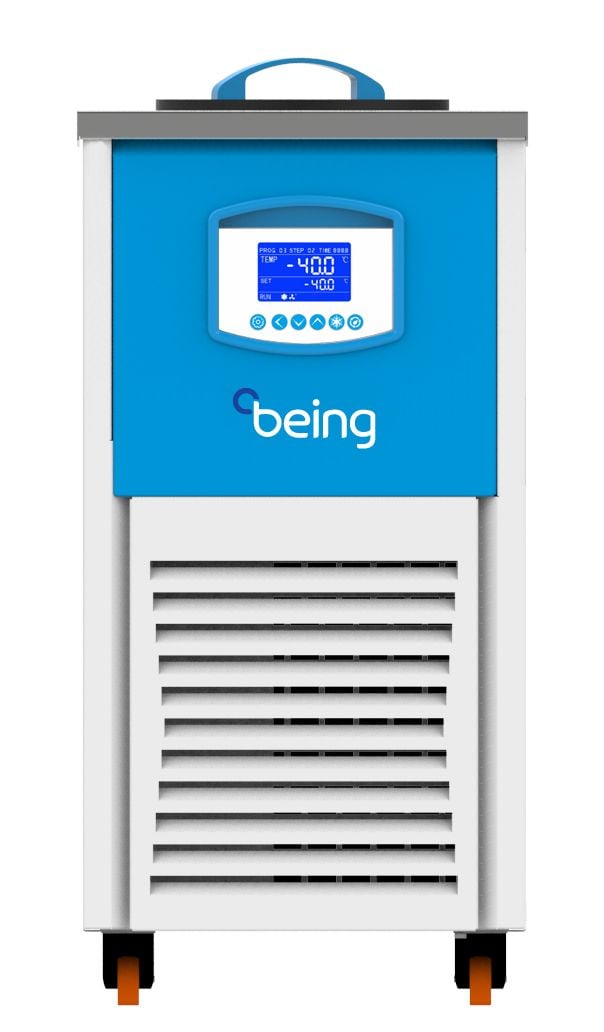

BRC Recirculating Chillers

Name: BRC Recirculating Chillers
Brand: BEING Scientific
SKU: BRC15103U-GROUP

Manufacturer: BEING Scientific

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Price Chart

Grouped product items
Cat Code	Description	Quantity	Capacity	Flow Rate	Price	Qty
BRC15103U BRC15103U	0.2 cu ft. BRC-03 Recirculating Chiller	Each	0.2 cu ft. (5 L)	6 L/min	$1,940.00	+ -
BRC15120C BRC15120C	1.1 cu ft. BRC-20 Recirculating Chiller	Each	1.1 cu ft. (30 L)	17 L/min	$5,200.00	+ -
BRC15105U BRC15105U	0.3 cu ft. BRC-05 Recirculating Chiller	Each	0.3 cu ft. (8 L)	6 L/min	$2,730.00	+ -
Total $0.00

Use the Quantity box to select product first.

Achieve continuous, reliable, and stable temperature control with the BEING BRC Recirculating Chillers. These robust cooling units are engineered for demanding laboratory and industrial applications, providing a wide temperature range of -20°C to 20°C. With precise PID control, advanced safety features, and a variety of capacities, the BRC Series is the ideal solution for protecting sensitive equipment and samples.

Description

Overview

In Stock!

Lead Times May Vary

The chillers are built for performance and peace of mind. A PID automatic control system with an intuitive LCD-display provides accurate and stable temperature management, while an automatic calibration function adapts to various lab environments. The corrosion-resistant stainless steel chamber ensures durability and easy cleaning, and the front accessible air filter simplifies maintenance. Safety is paramount: the chillers include independent over-temperature protection (meeting DIN 12880 standards), compressor lock-out to prevent over-cycling, and use eco-friendly refrigerant for enhanced safety and sustainability.

Features:

Wide temperature range from -20°C to 20°C
PID automatic control with large intuitive LCD-display
Independent over-temperature protection meets DIN 12880 International standards
Corrosion-resistant stainless steel chamber and heater
DC magnetic vortex pump provides precise and efficient flow
Air-cooled heat exchanger with front accessible air filter for easy cleaning
Compressor lock-out prevents over-cycling and premature pump failure
Energy-efficient condenser using eco-friendly refrigerant (R404A / R410A)
Available in 5 L, 8 L, 15.5 L, and 30 L capacities

Specifications

SKU	Model #	Max Capacity	Temperature Range	Temperature Stability	Cooling Capacity	Refrigerant	Temperature Sensor
BRC15103U	BRC-03	Storage: 5 L Liquid: 3.5 L	-20°C to 20°C	±2°C	580W @ 20°C	R404A	PT100
BRC15120C	BRC-20	Storage: 30 L Liquid: 25 L	-20°C to 20°C	±2°C	2800W @ 20°C	R404A	PT100
BRC15105U	BRC-05	Storage: 8 L Liquid: 5.2 L	-20°C to 20°C	±2°C	900W @ 20°C	R410A	PT100

Downloads

BEING BRC Recirculating Chillers Specification Sheet

Download

Additional Info

SKU	Dimensions	Internal Dimensions	Plug Type	Power Requirement	Display	Controller	Certification	Includes	Noise Level
BRC15103U	20.1 in x 9.1 in x 17.7 in (511 mm x 230 mm x 450 mm)	9.4 in x 5.9 in x 5.9 in (240 mm x 150 mm x 150 mm)	NEMA 5-15	120V, 60Hz, 450W	LCD	PID	ETL	Feet	≤45
BRC15120C	35.3 in x 17.7 in x 23.6 in (821 mm x 450 mm x 600 mm)	13.8 in x 13.8 in x 9.8 in (350 mm x 350 mm x 250 mm)	NEMA 5-15	120V, 60Hz, 600W	LCD	PID	ETL	Locking Casters	≤45
BRC15105U	24.6 in x 12.4 in x 17.9 in (624 mm x?315 mm x 455?mm)	9.4 in x 7.9 in x 6.7 in (240 mm x 200 mm x 170 mm)	NEMA 6-15	120V, 60Hz, 650W	LCD	PID	ETL	Locking Casters	≤55

Starting at $1,940.00

Select a product below and add it to your cart to request a quote.
