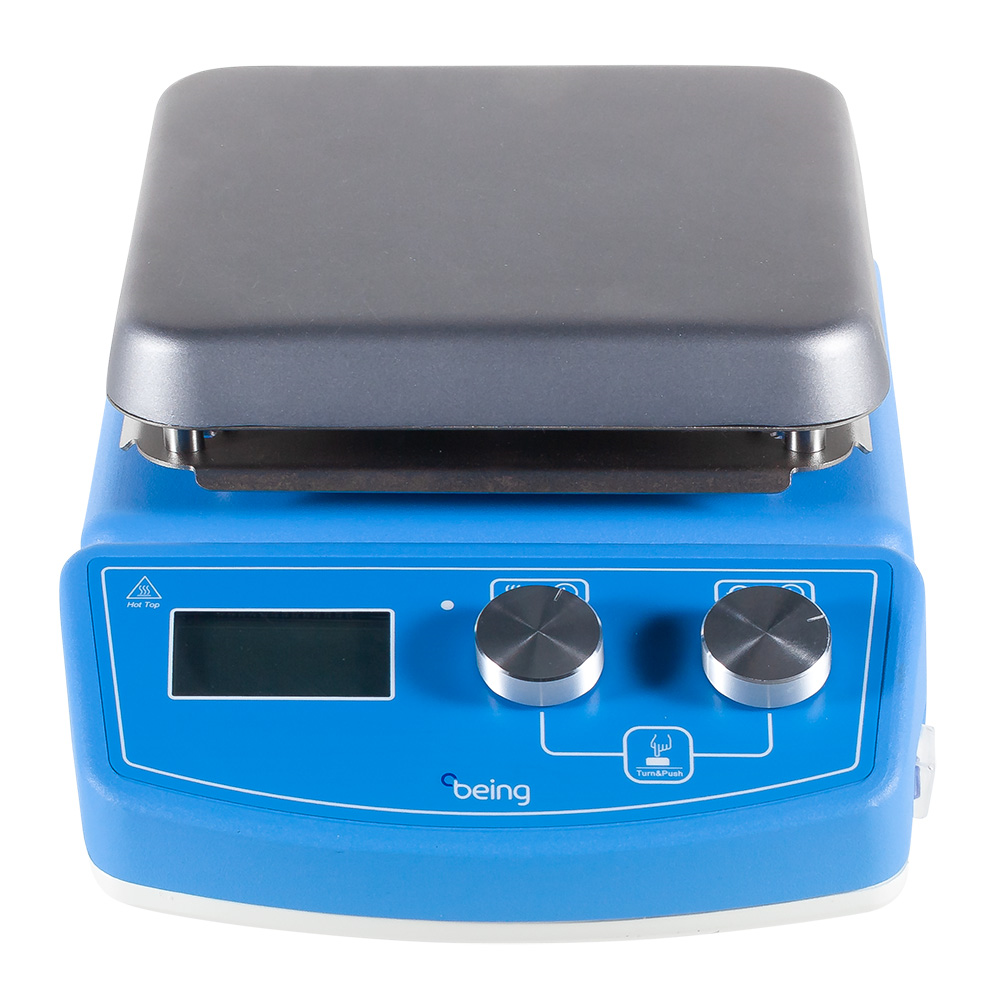

BMS Series Square Hot Plate Stirrers
Manufacturer: BEING Scientific
Description
The core of this stirrer is its precise control and safety. A Microprocessor PID control system, complemented by an Automatic Calibration Function, guarantees accurate and reliable temperature maintenance up to 200°C. The durable ceramic cover provides high thermal efficiency, and a Smooth Start/Shutdown System prevents accidental spillage. Safety is paramount: a Too Hot to Touch Heating Plate Light alerts users to residual heat, and a built-in power interruption protection function ensures your overnight operations automatically resume after a power loss. The large LCD color screen and long adjustable timer (up to 5,999 minutes) further enhance usability.
Features
Features:
- Microprocessor PID control with Automatic Calibration Function
- Maintenance-free brushless DC motor
- Durable ceramic cover provides high thermal efficiency (Ambient + 5°C to 200°C)
- Smooth Start/Shutdown System minimizes spillage of stirring samples
- Too Hot to Touch Heating Plate Light and Temperature deviation alarm
- Built-in power interruption protection function with auto-run capability
- Large LCD color display screen and timer adjustable up to 5,999 minutes
- Wide speed range even with heavy workloads
- Available in various plate sizes and capacities up to 15 L

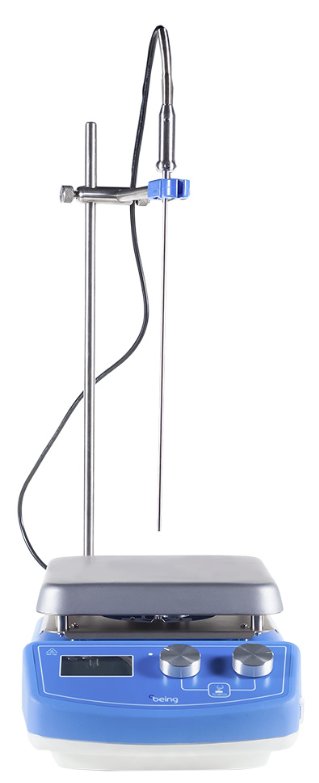

- Select sizes include Sample Temperature Probe
- Backed by a 2-year warranty
| SKU | Model # | Temperature Range | Temperature Accuracy | Temperature Sensor | Speed | Material | Shape |
|---|---|---|---|---|---|---|---|
| BMB150905U | BMS-09B5 | Ambient 5°C - 200°C | ± 5°C | PT100 | 200 rpm to 2000 rpm | Ceramic | Square |
| BMB150703U | BMS-07B3 | Ambient 5°C - 200°C | ± 5°C | PT100 | 200 rpm to 2000 rpm | Ceramic | Square |
| BMA150703U | BMS-07A3 | Ambient 5°C to 320°C | ± 5°C | PT100 | 200 rpm to 2000 rpm | Ceramic | Square |
| BMA150905U | BMS-09A5 | Ambient 5°C to 320°C | ± 5°C | PT100 | 200 rpm to 2000 rpm | Ceramic | Square |
| BMA150912U | BMS-09A12 | Ambient 5°C to 320°C | ± 5°C | PT100 | 200 rpm to 2000 rpm | Ceramic | Square |
| BMB150915U | BMS-09B15 | Ambient 5°C to 320°C | ± 5°C | PT100 | 200 rpm to 2000 rpm | Ceramic | Square |
| SKU | Controller | Includes | Type | Dimensions | Warranty | Power Requirement | Plug Type | Display |
|---|---|---|---|---|---|---|---|---|
| BMB150905U | PID | Digital | 8.3 in x 5.1 in x 13.0 in (211 mm x 130 mm x 330 mm) | 2 years | 120V, 60Hz, 550W | NEMA 5-15 | LCD | |
| BMB150703U | PID | Digital | 5.9 in x 4.3 in x 9.8 in (150 mm x 109 mm x 249 mm) | 2 years | 120V, 60Hz, 350W | NEMA 5-15 | LCD | |
| BMA150703U | PID | Sample Temperature Probe | Digital | 5.9 in x 4.3 in x 9.8 in (150 mm x 109 mm x 249 mm) | 2 years | 120V, 60Hz, 350W | NEMA 5-15 | LCD |
| BMA150905U | PID | Sample Temperature Probe | Digital | 8.3 in x 5.1 in x 13.0 in (211 mm x 130 mm x 330 mm) | 2 years | 120V, 60Hz, 550W | NEMA 5-15 | LCD |
| BMA150912U | PID | Sample Temperature Probe | Digital | 8.3 in x 5.1 in x 13.0 in (211 mm x 130 mm x 330 mm) | 2 years | 120V, 60Hz, 650W | NEMA 5-15 | LCD |
| BMB150915U | PID | Sample Temperature Probe | Digital | 8.3 in x 5.1 in x 13.0 in (211 mm x 130 mm x 330 mm) | 2 years | 120V, 60Hz, 750W | NEMA 5-15 | LCD |
Starting at $508.00
Select a product below and add it to your cart to request a quote.
