SQ Series Large Capacity Autoclaves & Steam Sterilizers
Manufacturer: Yamato Scientific America
Description
The top-loading SQ Series autoclaves is a collection of high-capacity steam sterilizers with an advanced cooling fan system, allowing you to handle more load quickly. Built with high-performance and easy operation in mind, the Yamato SQ series is equipped with an automated high-pressure sterilization system and an operating temperature range that goes up to 135°C. The large-capacity SQ steam sterilizer series takes your sterilization to the next level. Whether it involves simple sterilization processes to complex sterilization of culture media, and melting of culture media.
Features:
- PID microprocessor controller
- Simple setting and operation
- Sterilization of instruments, sterilization of culture media and liquids, and melting of culture media
- Custom programs can be saved for repeated use
- Various safety features
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Includes:
- Two stainless steel mesh baskets
- Vapor cup
- Drain bottle
- Drain board
- Chemical indicator (30 pieces)
- Filter
Warranty:
- One-year warranty
| SKU | Operating Temperature Range | Operating Pressure | Timer Range |
|---|---|---|---|
| SQ-500C | 45°C to 135°C | 0.255 Mpa | 1 min to 99 hrs 59 min |

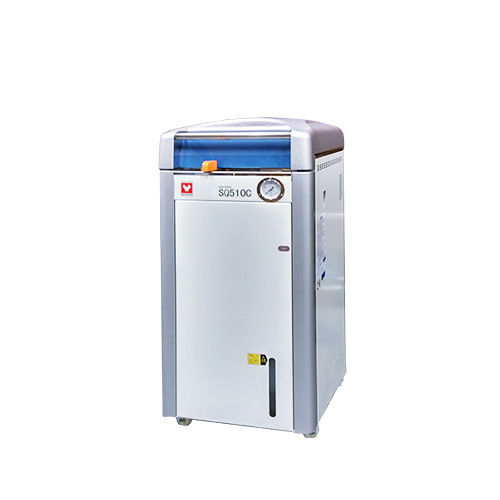

| SQ-510C | 45°C to 135°C | 0.255 Mpa | 1 min to 99 hrs 59 min |

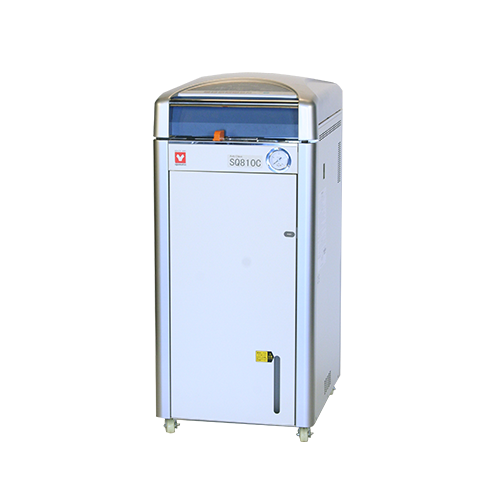

| SQ-810C | 45°C to 135°C | 0.255 Mpa | 1 min to 99 hrs 59 min |

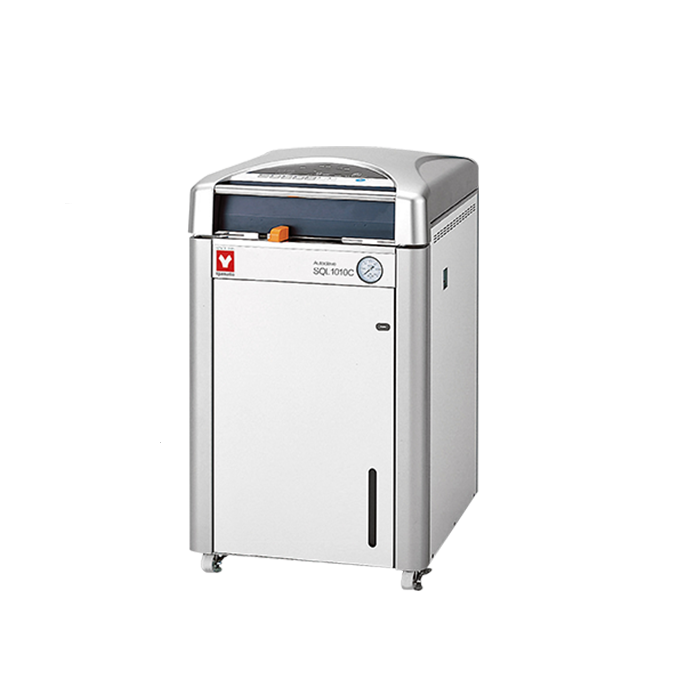

| SQL-1010C | 45°C to 135°C | 0.255 Mpa | 1 min to 99 hrs 59 min |
|
|
SQ Series Specification Sheet | Download |
|
|
SQ Series Infographic | Download |
|
|
Sterilizer Accessories | Download |
|
|
Yamato Scientific Electrical Plug (NEMA) Information Sheet | Download |
|
|
Yamato Scientific How to Install 220V Plug | Download |
|
|
SQ Series Large Capacity Autoclaves & Steam Sterilizers Manual | Download |
-
Read MoreAutoclaving has earned its place as the gold-standard of sterilization methods because of its ability to rapidly kill microorganisms without needing toxic chemicals to get the job done. Often, you can see autoclaves in industries ranging from scientific to commercial.
| SKU | Dimensions | Power Requirement | Controller |
|---|---|---|---|
| SQ-500C | 25.98 in x 20.47 in x 34.69 in | 110-120 VAC, 12.5-24.5A | PID Microprocessor |
| SQ-510C | 25.98 in x 20.47 in x 34.69 in | 200-240 VAC, 10.5-12.5A | PID Microprocessor |
| SQ-810C | 25.98 in x 20.47 in x 45.71 in | 200-240 VAC, 10.5-12.5A | PID Microprocessor |
| SQL-1010C | 29.92 in x 26.77 in x 45.43 in | 220 VAC, 19A | PID Microprocessor |
Starting at $12,610.00
Select a product below and add it to your cart to request a quote.
