Standard Flammable Storage Refrigerators
Manufacturer: American Biotech Supply
Description
Our Standard Series refrigerators provide multi-functional features in a cost-effective design. All units run on natural, hydrocarbon refrigerant for environmental health and energy efficiency.
Features:
- Microprocessor temperature controller
- Digital temperature display and alarm module with battery back-up to support temperature monitoring and alarms
- Sample simulated digital temperature display: 0.1° resolution adjustable temperature display in °C or °F
- Audible and visual high/low temperature alarms
- Sensor error alarm
- Power failure alarm
- Resettable 1-point min/max history
- Remote alarm contacts
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
- One solid swing door, right hinged, not reversible
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handle
- Leveling legs
- One 3/4 inch probe access port
- White textured cabinet and door
- High-density urethane foam cabinet and door insulation
- Natural, hydrocarbon refrigerant (R600A)
- Utilizes ATEX and non-sparking components for safety
- Cycle defrost
Certifications:
- ETL listed
- C-ETL listed
- Certified to UL471 standards
- NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations
Warranty:
- Two-year parts and labor warranty
Note: These units are not designed for use in environments where volatile/explosive conditions could potentially exist.
Products require 4 inches of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
| SKU | Door Type | Operating Temperature Range | Certification | Warranty | Hinge |
|---|---|---|---|---|---|

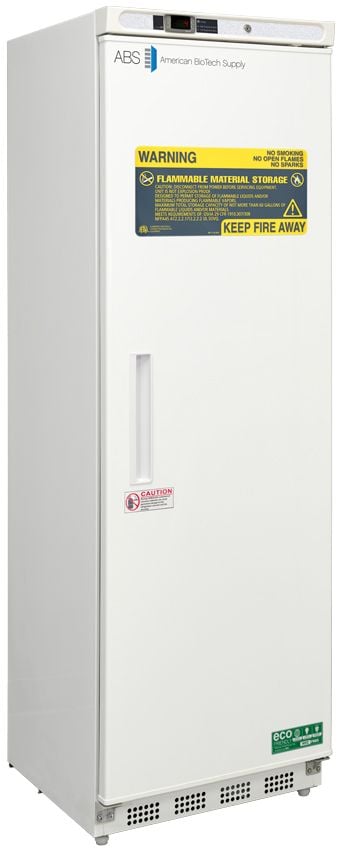

| ABT-HC-FRP-14 | Solid Swing Door | 1°C to 10°C | ETL, C-ETL listed, UL471 Standards | 2 Year | Right |

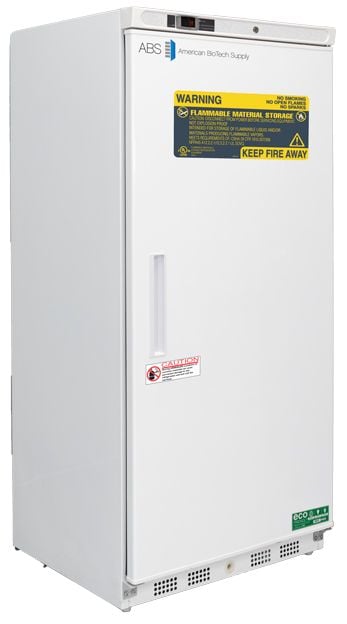

| ABT-HC-FRP-17 | Solid Swing Door | 1°C to 10°C | ETL, C-ETL listed, UL471 Standards | 2 Year | Right |

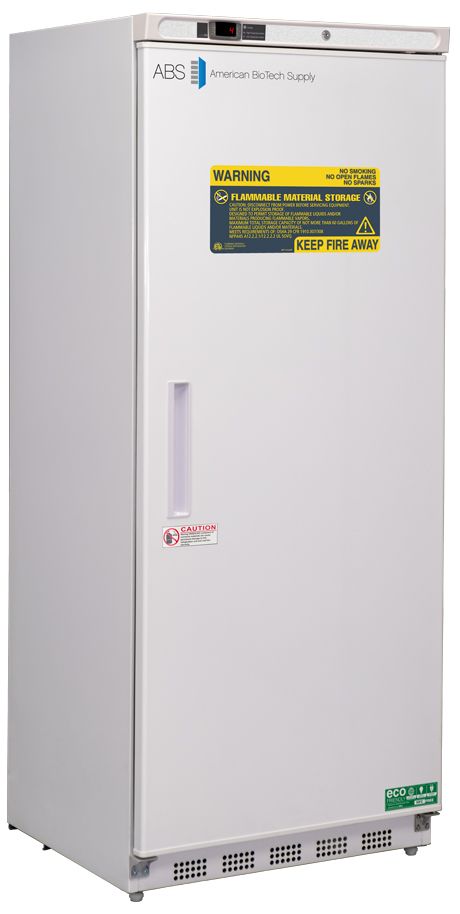

| ABT-HC-FRP-20 | Solid Swing Door | 1°C to 10°C | ETL, C-ETL listed, UL471 Standards | 2 Year | Right |
|
|
ABT-HC-FRP-14 Specification Sheet | Download |
|
|
ABT-HC-FRP-17 Specification Sheet | Download |
|
|
ABT-HC-FRP-20 Specification Sheet | Download |
|
|
ABT-HC-FRP-14 Cut Sheet | Download |
|
|
ABT-HC-FRP-17 Cut Sheet | Download |
|
|
ABT-HC-FRP-20 Cut Sheet | Download |
| SKU | Dimensions | Electrical Information | Refrigerant | Controller | Plug Type |
|---|---|---|---|---|---|
| ABT-HC-FRP-14 | 24.375 in x 23.625 in x 73.0 in | 115V, 60Hz, 2.5A | R600a | Microprocessor | NEMA 5-15P |
| ABT-HC-FRP-17 | 28.625 in x 30.75 in x 67.75 in | 115V, 60Hz, 2.5A | R600a | Microprocessor | NEMA 5-15P |
| ABT-HC-FRP-20 | 29.0 in x 30.75 in x 74.625 in | 115V, 60Hz, 2.5A | R600a | Microprocessor | NEMA 5-15P |
Starting at from $4,718.00 Sale $4,482.10
Select a product below and add it to your cart to request a quote.
