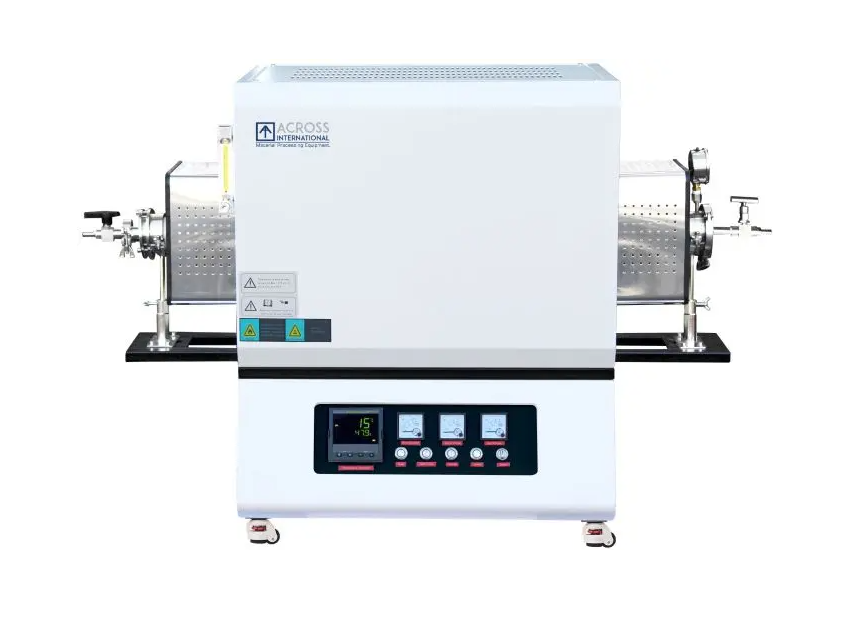

Tube Furnace with Eurotherm Controller
Manufacturer: Across International
In keeping with its reputation for excellence in laboratory heating, Across International presents its Across Int. Tube Furnace with a Eurotherm Controller. This tube furnace uses a double-walled, steel internal housing to help minimize heat loss. 1900 grade molybdenum silicide heating elements provide the highest quality heating capabilities, while also allowing multiple atmosphere processes to take place during a single cycle. Control of the unit functions through a 40-segment digital controller with a built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Description
In Stock!
Lead Times May Vary
The TF1750 series tube furnace features a chamber with Mitsubishi (Japan) high quality 1900 grade alumina fiber insulation and 1900 grade molybdenum silicide heating elements. A double-walled steel internal housing helps minimize heat loss to the exterior surface.
Features:
- Compact, portable and lightweight design
- Dual flanges support ensures better sealing and longer tube life
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting
- Built-in computer interface
- Long life type B thermocouple
- CE compliant
Safety Features:
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
- Power failure protection resumes furnace operation right after the point of failure when power is re-established
- Warning: Never fill furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane
TF1750 Series Includes:
| Quantity | Product |
|---|---|
| 1 set | Stainless steel vacuum sealing flange set with pressure meter |
| 1 piece | Alumina tube 80mm OD x 1000mm length |
| 1 piece | Thermocouple |
| 1 piece | Flow meter |
| 2 pieces | Spare heating element (SiC) |
| 1 piece | Stainless steel hook |
| 4 pieces | Alumina ceramic thermal block |
| 1 pair | Thermal gloves |
| 2 pieces | Spare fuse |
| 5 pieces | Crucible |
| 1 set | USB/RS485 Computer interface kit |
| 2 pieces | Furnace and Eurotherm or Shimaden controller manual |
| SKU | Temperature Accuracy | Max Vacuum | Power Requirement |
|---|---|---|---|
| TF1750.80 | ±1°C | Pressure: 0.001 Pa / 0.0075 millitorr / 0.00001 mbar | 208-240VAC, 50/60 Hz, Single Phase |
| SKU | Dimensions |
|---|---|
| TF1750.80 | 25" x 19" x 27" |
In keeping with its reputation for excellence in laboratory heating, Across International presents its Across Int. Tube Furnace with a Eurotherm Controller. This tube furnace uses a double-walled, steel internal housing to help minimize heat loss. 1900 grade molybdenum silicide heating elements provide the highest quality heating capabilities, while also allowing multiple atmosphere processes to take place during a single cycle. Control of the unit functions through a 40-segment digital controller with a built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Starting at $23,990.00
