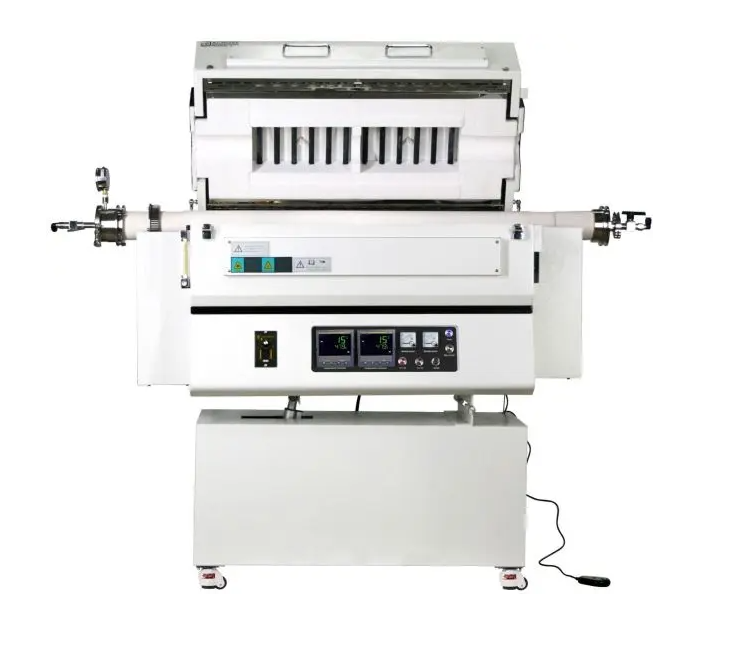

Single Zone 1500°C Rotary & Tilting Top-Open Tube Furnaces

RTF1500 series rotary and tilting top-open tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Eurotherm multi-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. Test results can be saved or exported.

Features:

• Top-open furnace chamber for fast and easy tube access
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
• Multiple atmosphere processes in a single cycle are possible
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting
• Built-in computer interface
• Long life type S thermocouple

Safety Features:

• Furnace overheat protection cuts off power when temperature is over the desired range
• Thermocouple protection cuts off power when the thermocouple is broken or malfunctioned
• Power failure protection resume furnace operation right after the point of failure when power is back up
• Limit switch turns off furnace once top is open
• Never fill furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane

RTF1500 Series Includes:
