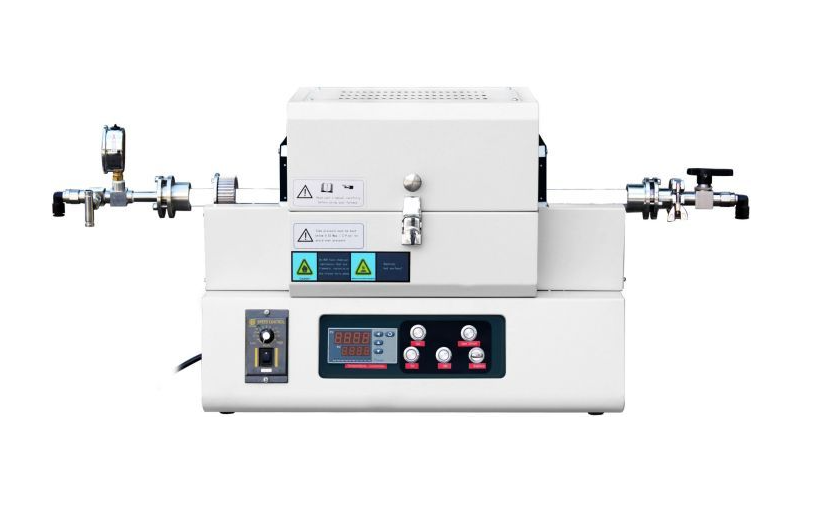

1200°C 1-Zone, Rotary Top-Open Tube Furnace
Manufacturer: Across International
The CE compliant Across Int. 1200°C 1-zone, rotary top-open tube furnace functions with a compact, portable, lightweight design great for most benchtops. Heating is facilitated by spiral wire coils wrapped in Mitsubishi alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface, and its microprocessor helps monitor temperature control with an overheat protection feature and automatic shut-off when out of acceptable range. The furnace will also turn off when the top of the unit is opened.
Description
In Stock!
Lead Times May Vary
The RTF1200 series compact top-open rotary tube furnace features spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface. Furnace operation is controlled by a multi-segment digital controller.
Features:
- Compact, portable and lightweight design
- Top-open furnace chamber for fast and easy tube access
- Microprocessor based self-tuning PID control provides an optimum thermal process with minimal overshoot
- Multiple atmosphere processes in a single cycle are possible (ex: binder burnout in air and parts sintering under rough vacuum or inert gas environment.)
- Long life type K thermocouple
- CE compliant
Safety Features:
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
- Power failure protection resumes furnace operation right after the point of failure when power is re-established
- Limit switch turns off furnace once top is open
- Warning: Never fill furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane
RTF1200 Series Includes:
| Quantity | Product |
|---|---|
| 1 piece | Quartz tube 25mm OD x 700mm L *2" diameter x 5" L in the center with baffle |
| 1 set | Stainless steel vacuum sealing flanges with pressure meter |
| 1 piece | Stainless steel hook |
| 1 set | Thermal block |
| 2 pieces | Spare fuse |
| 1 pair | Thermal gloves |
| 1 piece | Furnace operation manual |
| SKU | Temperature Accuracy | Max Vacuum | Power Requirement |
|---|---|---|---|
| RTF1200.25 | ±1°C | Pressure: 0.001 Pa / 0.0075 millitorr / 0.00001 mbar | 115V, 50/60Hz, 1~phase, 1,500 watts |
| SKU | Dimensions |
|---|---|
| RTF1200.25 | 23" x 14" x 17.5" (without tube) |
The CE compliant Across Int. 1200°C 1-zone, rotary top-open tube furnace functions with a compact, portable, lightweight design great for most benchtops. Heating is facilitated by spiral wire coils wrapped in Mitsubishi alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface, and its microprocessor helps monitor temperature control with an overheat protection feature and automatic shut-off when out of acceptable range. The furnace will also turn off when the top of the unit is opened.
